| Asset Management | |||
| SecureAsset10 | |||
 |
|||
| LTE Asset Wireless Tracker | |||
| SecureAsset10 is a LTE wireless asset tracker that supports multiple alarms such as ≈ light sensors and low battery, designed specifically for vehicle and asset tracking. It is very suitable for remote monitoring of user targets, and is also suitable for application scenarios such as vehicle rental, fleet management, logistics and transportation | |||
| Functions |
|||
| Multiple Location Methods The synergy of multiple positioning systems such as WIFI/GPS/BDS/LBS. Ensures accurate location display on the platform |
Anti-Demolition Design Built-in light sensor, when the device is dismantled, the light sensor alarm is triggered and a dismantling alarm is reported in time. |
||

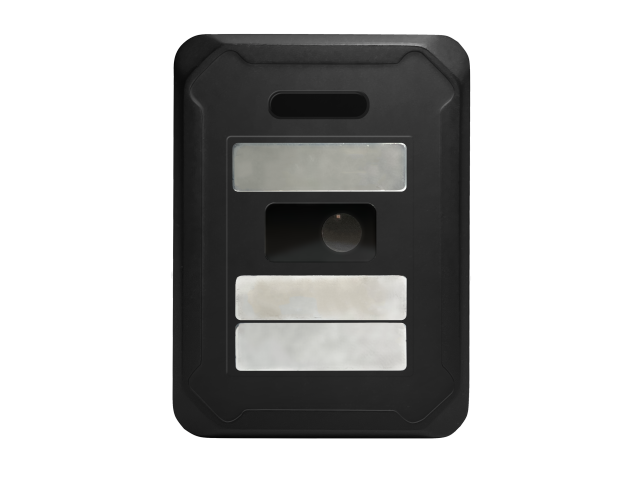

| Convenient Installation Strong magnetic magnet design, can be easily fixed to most metal surfaces |
Multiple Alerts Abundant alarm reporting functions, such as speed alarm, vibration alarm, power off alarm, etc. |
Vehicle Searched Mode Switch to the searched mode to carry out risk control and recovery of vehicles or valuable assets. |
2800 mAh Built-in Battery Big battery and ultra-low power consumption design can report once a day and over 3 years of standby time |
|
Specification
|
|||
|
GNSS
|
|||
|
Positioning system:WiFi+GPS+BDS+LBS
|
|||
|
frequency band:L1
|
|||
|
Positioning accuracy:≤2.5m CEP
|
|||
|
Tracking sensitivity:-162dBm
|
|||
|
Acquisition sensitivity:-160dBm
|
|||
|
TTFF(open sky) Avg. hot start:≤1sec
|
|||
|
Avg. cold start:≤32sec
|
|||
|
Cellular
|
|||
|
Communication network: LTE Cat1
|
|||
|
Frequency: LTE-FDD: B1/B3/B5/B8
|
|||
|
LTE-TDD: B34/B38/B39/B40/B41
|
|||
|
Power
|
|||
|
Battery：2800mAh Dry-cell battery
|
|||
|
Input voltage：
|
|||
|
Interface
|
|||
|
LED indication：GPS(Orange), Network(Yellow),Power(Red)
|
|||
|
SIM：Nano SIM
|
|||
|
Physical Specification
|
|||
|

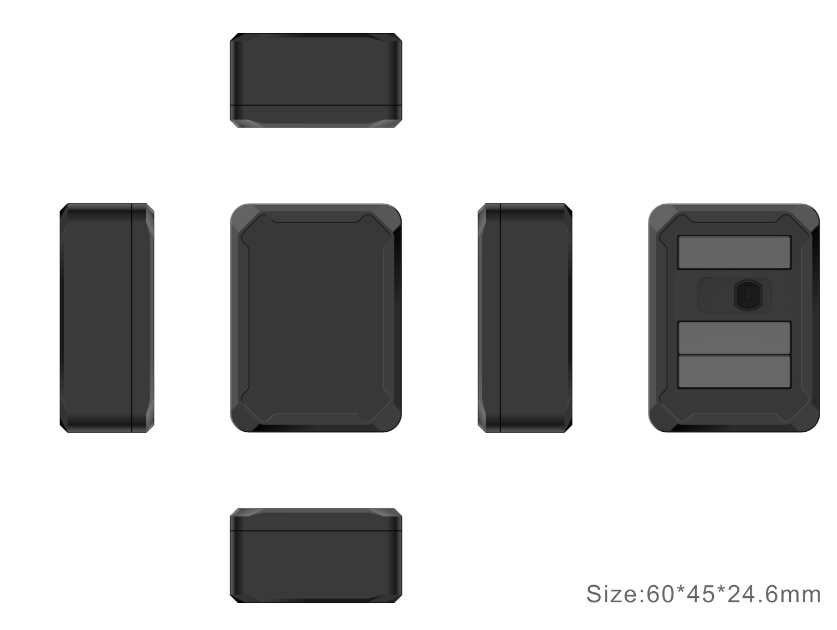

Dimension：60*45*24.6mm
|
|||
|
Operating Environment
|
|||
|
Operating temperature：-20℃ to +70℃
|
