Products Description
|
Master chip |
ASR1606S |
|
GPS chip |
AT6558R |
|
4G frequency band |
LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 |
|
main interface |

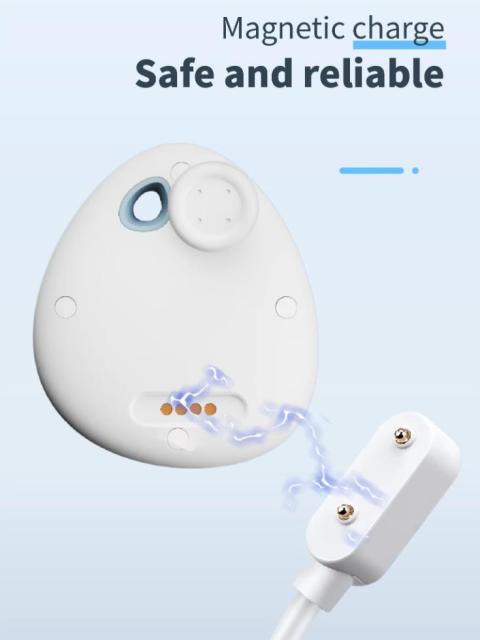

Magnetic contact |
|
Product size (mm) |
57*50*20 |
|
Product Net Weight |
33.5g |
|
Battery |
Polymer battery 600mAh |
|
Maximum frequency error |
±0.1ppm |
|
Start-up mode |
Button |
|
Maximum power output |
LTE-FDD B1/B3/B5/B8:23dBm±2dBm LTE-TDD B34/B38/B39/B40/B41:23dBm±2dBm |
|
Dynamic output range |
-45～23dBm |
|
Receive sensitivity |
-98dBm |
|
Maximum frequency error |
±0.1ppm |
|
Sensitivity |
Cold start: -148 DBM Hot start: -156 DBM Recapture: -160 DBM Tracking: -162 DBM |
|
TTFF |
Cold start: 32 seconds on average |
|
SIM Card |
Open-top Nano card holder |
