Master chip |
A7670SA |
|
GPS chip |
AT6558R |
|
4G frequency band |
LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:850/900/1800/1900 MHz |
|
main interface |
Type-c |
|

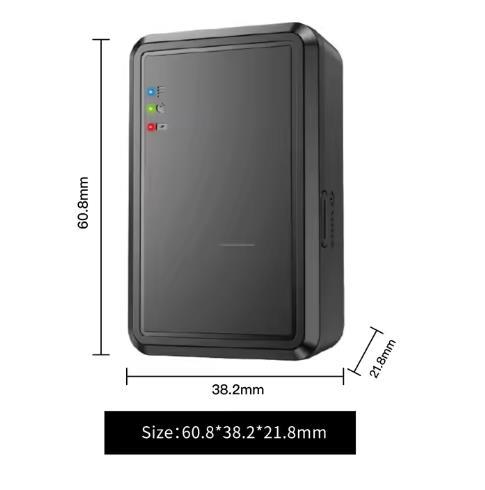

Product size (mm) |
60.8*38.2*21.8 |
|
Product Net Weight |
63.7g |
|
Battery |
Polymer battery 1200 mAh |
|
Outer shell |
anti-fire |
|
Start-up mode |
Card boot |
|
Maximum power output |
LTE-FDD: 23dBm±2dBm GSM：850/900：33dBm±2dB DCS1800/PCS1900:30dBm±2dB |
|
Dynamic output range |
-45～23dBm |
|
Receive sensitivity |
-98dBm |
|
Maximum frequency error |
±0.1ppm |
|
Sensitivity |
Cold start: -148 DBM Hot start: -156 DBM Recapture: -160 DBM Tracking: -162 DBM |
|
TTFF |
Cold start: 32 seconds on average |
|
SIM Card |
Nano Push |
