Master chip
|
ASR1606C
|
|
GPS chip
|
AT6558R
|
|
4G frequency band
|
LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41
|
|
Operating voltage
|
3.4-4.35V DC
|
|
Product size (mm)
|
52*45*21
|
|
Product Net Weight
|
31.8g
|
|
Battery
|
Polymer battery 420 mAh
|
|

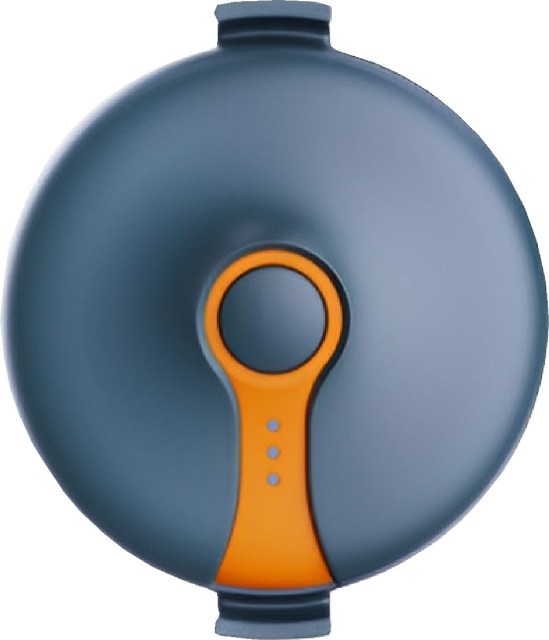

Indicator light
|
Blue: Data networking light Green: GPS light Red: charging
|
|
Antenna
|
Ceramic and FPC
|
|

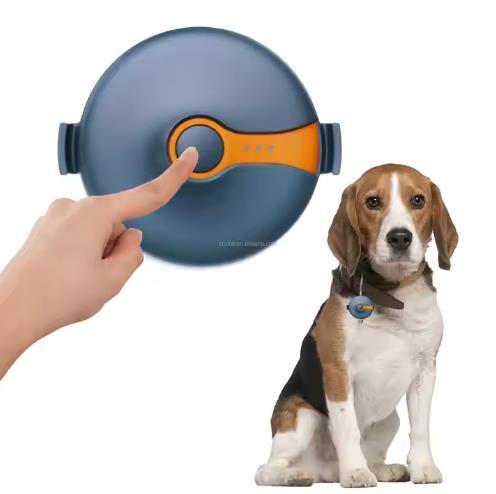

Start-up mode
|
Hold down the power button for 3 seconds
|
|
Maximum power output
|
LTE-FDD B1/B3/B5/B8:23dBm±2dBm LTE-TDD B34/B38/B39/B40/B41:23dBm±2dBm
|
|
Dynamic output range
|
-45～23dBm
|
|
Receive sensitivity
|
-98dBm
|
|
Maximum frequency error
|
±0.1ppm
|
|
Sensitivity
|
Cold start: -148 DBM Hot start: -156 DBM Recapture: -160 DBM Tracking: -162 DBM
|
|
TTFF
|
Cold start: 32 seconds on average
|
|
SIM Card
|
Nano Push
|
