A GPS tracker is an essential component of modern IoT devices, widely used in vehicle tracking, personal tracking, pet tracking, and other fields. It provides real-time, accurate geographical location and movement data, playing a crucial role in the safety management and monitoring of objects, people, and animals.
To better understand the working principles and technical features of a GPS tracker, we can compare it to a "human." Just as the human body consists of various systems and organs working together, the hardware components of a GPS tracker collaborate to ensure efficient operation. Below is a detailed explanation of the basic components of a GPS tracker.
The GPS module is one of the core components of a GPS tracker. It receives signals from satellites and calculates the real-time location of the device. In simple terms, the GPS module is the "eyes" of the GPS tracker, enabling the tracker to "see" its position in geographic space.
There are various types of GPS modules on the market. Low-power modules (such as the Quectel series) are commonly used in devices that require long-term operation, while high-precision modules are used in applications that demand higher location accuracy. The accuracy and power consumption of the GPS module are key factors affecting the performance of the GPS tracker. ( for example, the module is like below )
The communication module acts as the bridge between the GPS tracker and the external world. It transmits location data and other information between the device and a server. Generally, GPS trackers use cellular communication modules (such as 2G, 3G, 4G, or even NB-IoT) for data exchange. In remote areas, satellite communication modules (such as Iridium or Globalstar) are used to ensure that the device remains connected and can transmit data.
The communication module functions like the "mouth" of the GPS tracker, transmitting the location information gathered by the GPS module to a backend server or other devices, ensuring that data is updated in real-time.( for example, this is how the wireless module looks like )

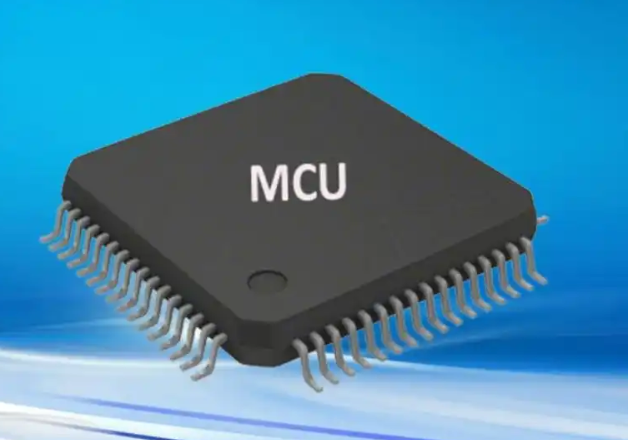

The MCU (microcontroller unit) is the "brain" of the GPS tracker, responsible for coordinating and processing data from the GPS module, communication module, and other hardware components. It executes instructions, manages the functions of the device, and ensures that all components work efficiently together. (this is how the MCU looks like , very small, but he is the one !)
The MCU typically consists of a processor and some input/output interfaces. It controls the operation of each module in real-time, ensuring that the device functions reliably under various conditions.
A GPS tracker requires a stable power supply to operate continuously. Typically, GPS trackers use lithium-ion or lithium polymer batteries, which offer high energy density and long battery life, ensuring that the device can operate for extended periods without frequent recharging.
Some devices also support solar charging, further extending the device’s runtime, especially for outdoor use, where long-term tracking and monitoring are required. (for example, one of the batterie's types )
Depending on the specific application, a GPS tracker may be equipped with several sensors to monitor the device's dynamic state. These sensors include accelerometers, gyroscopes, temperature sensors, humidity sensors, motion sensors, and more.

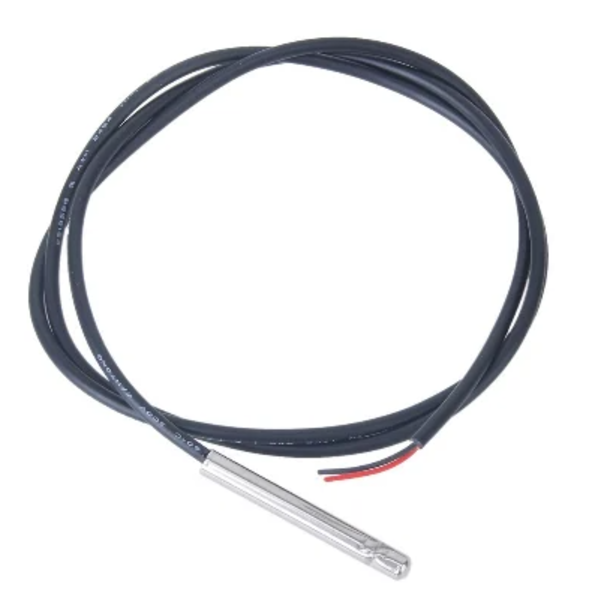

The role of sensors is similar to that of a human's "hands, feet, and other sensory organs." They help the GPS tracker perceive more external environmental factors. For example, motion sensors detect whether the device is moving, while temperature sensors monitor changes in the surrounding environment’s temperature. (one of the sensors that the tracker works with. There are many extra sensors )
The storage chip is used to store the GPS tracker’s location data, historical tracks, configuration files, and other information. Some high-end devices come with built-in storage chips to cache data when the signal is lost, ensuring that important location data is preserved even when there is no signal.
The storage chip functions like the "memory" of a human, storing and processing all the received "senses and data," thus supporting the device's future operations.
External interfaces include USB ports, charging ports, buttons, LED indicators, speakers, etc., which allow the device to be operated and display its status. These interfaces enable the user to control and adjust the GPS tracker, check its status, or charge the device.
These interfaces provide the "flexibility" of the GPS tracker, ensuring that the device can interact effectively with various external systems.
The enclosure is an essential protective component of the GPS tracker. It surrounds and protects the internal hardware components, preventing the device from being damaged by external environmental factors. Commonly, enclosures are designed to be waterproof, dustproof, and shockproof, making the device suitable for various complex operating environments.
The enclosure acts like the "body" of a human, providing protection for the internal organs and ensuring that the GPS tracker remains operational even in harsh conditions.

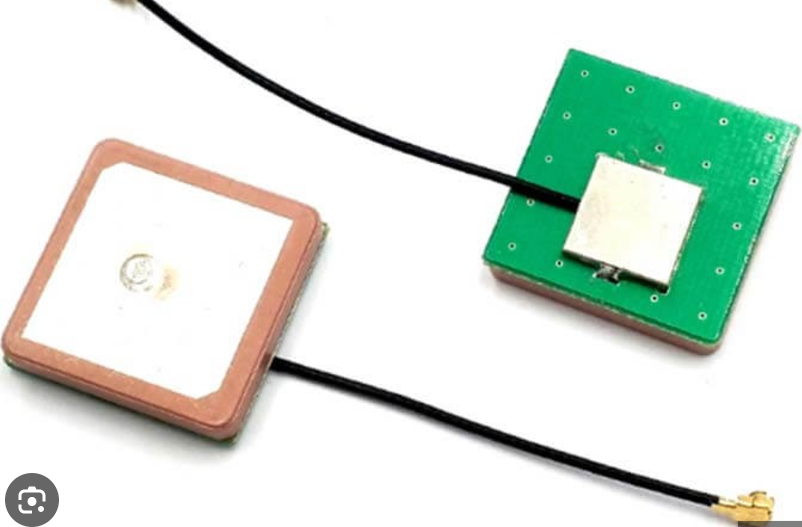

The antennas of a GPS tracker are crucial for signal reception. The GPS antenna is responsible for receiving satellite signals, while the communication antenna connects with the network communication module (such as GSM or LTE). The design of the antennas greatly impacts the effectiveness of signal reception and transmission, directly affecting the tracking accuracy and communication capabilities of the device.
Antennas function like the "ears" of a human, allowing the GPS tracker to receive various external signals.
Some GPS trackers come with alarm functions, such as vibration sensors, fall detection, or emergency buttons, which can trigger alerts under abnormal conditions. These alarm features are the "output" of the GPS tracker, notifying users of any emergencies or irregular situations, allowing them to take timely action.
The hardware components of a GPS tracker consist of multiple key elements, each with its unique function and role. These components work together to ensure that the GPS tracker can accurately and reliably perform location tracking and data transmission. Depending on the specific application, the hardware configuration of the GPS tracker may vary, but the core components typically serve similar purposes.
By understanding the hardware components of a GPS tracker, we can better appreciate its important role in the modern IoT ecosystem. And we also welcome anyone who is interested in this device contacting us anytime for further discussion.
